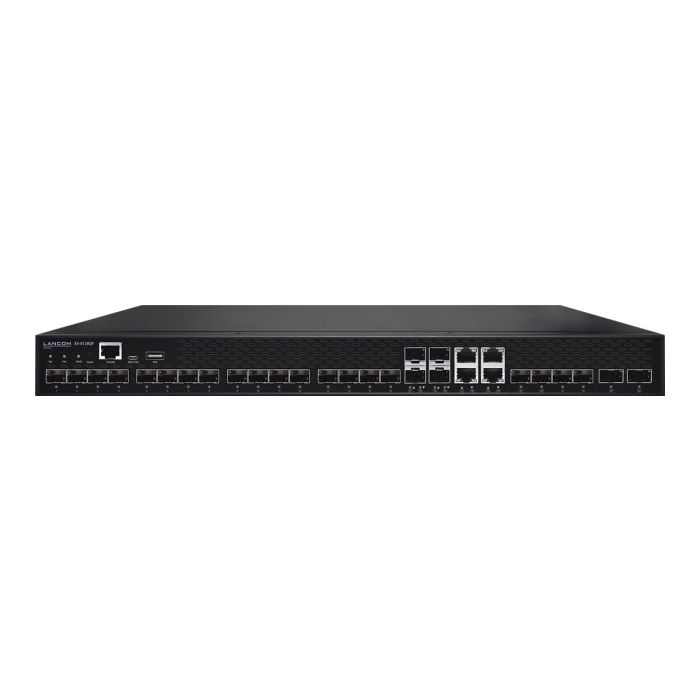

Lancom XS-6128QF - Switch - L3 - managed - 16 x 10 Gigabit SFP+ + 4 x combo 10 Gigabit SFP+/RJ-45 + 4 x Combo 25 Gigabit SFP28 (Uplink)

14.355,61 €
inkl. 20% MWSt zzgl Versand
Lancom 61860
+ 2 x Combo 40 Gigabit QSFP+ (Uplink) - Luftstrom von vorne nach hinten - an Rack montierbar
LANCOM XS-6128QF - Switch - L3 - managed - 16 x 10 Gigabit SFP+ + 4 x combo 10 Gigabit SFP+/RJ-45 + 4 x Combo 25 Gigabit SFP28 (Uplink) + 2 x Combo 40 Gigabit QSFP+ (Uplink) - Luftstrom von vorne nach hinten - an Rack montierbar
Weitere Informationen
Product Name Lancom XS-6128QF - Switch - L3 - managed - 16 x 10 Gigabit SFP+ + 4 x combo 10 Gigabit SFP+/RJ-45 + 4 x Combo 25 Gigabit SFP28 (Uplink)
Hersteller-ArtNr 61860
specification
Allgemein
Gerätetyp
Switch - 20 Anschlüsse - L3 - managed - stapelbar
Gehäusetyp
Luftstrom von vorne nach hinten an Rack montierbar 1U
Untertyp
10 Gigabit Ethernet
Ports
16 x 10 Gigabit SFP+ + 4 x combo 10 Gigabit SFP+/RJ-45 + 4 x Combo 25 Gigabit SFP28 (Uplink) + 2 x Combo 40 Gigabit QSFP+ (Uplink)
Leistung
Latenz: 4 µs
Backplane-Geschwindigkeit: 1 Tbit/s
Firewall-Durchsatz (Paketgröße 64 Byte): 744 Mpps
Kapazität
Gekennzeichnete VLANs: 4096
Aktive VLANs: 4000
IGMP Multicast-Gruppen: 1024
Größe der MAC-Adresstabelle
32.000 Einträge
Jumbo-Rahmenunterstützung
12.000 Byte
Routing Protocol
IGMPv2, IGMP, IGMPv3, statisches IPv4-Routing, MLDv2, MLD
Remoteverwaltungsprotokoll
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, CLI, SCP, ICMP, DHCP
Verschlüsselungsalgorithmus
MD5, SSL
Authentifizierungsmethode
Secure Shell (SSH), RADIUS, TACACS+
Leistungsmerkmale
Flusskontrolle, Routing, VLAN-Unterstützung, IGMP Snooping, Store-and-Forward, Broadcast Storm Control, IPv6-Unterstützung, Multicast Storm Control, Unicast Storm Control, Firmware aktualisierbar, SNTP-Unterstützung, STP Support, RSTP-Unterstützung, MSTP Support, prioritätsbasierte Flusssteuerung, DHCP-Snooping, ACL Support, QoS, RADIUS-Unterstützung, SSH-Unterstützung, DHCP-Server, MLD-Snooping, DAI, Cable Diagnostics Function, UDLD, IPv4-Unterstützung, LACP-Support, LLDP-Support, DHCP-Relais, LACP, Port Security, DHCP-Client, statisches Routing, FEC, Hot-Swap-Lüfter, CoS, gekennzeichnetes VLAN, sFlow v5, GVRP, IGMP-Proxy, PTP, 2 Lüfter, Storm Control, IP-Quellwächter, SCP, MIB II, IF MIB, auf Richtlinie basierte Weiterleitung, AAA, IGMP Abfrager, Voice VLAN, PVE, Guest VLAN, DoS protection, sicheres Hochfahren, ARP-Spoofing, SD-LAN-Support
Produktzertifizierungen
IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1Qbb, IEEE 1588v2, IEEE 802.1Qat, IEEE 802.3bj, IEEE 802.1Qav
Statusanzeiger
System, Link/Aktivität, Lüfter, Stapel
Erweiterung/Konnektivität
Schnittstellen
20 x 10Gbit-LAN SFP+
4 x 10GBase-T RJ-45
4 x 25Gbit LAN SFP28 Uplink
2 x 40Gbit-LAN QSFP+ Uplink
4 x 50Gbit LAN SFP Stacking
1 x Verwaltung (micro-USB)
1 x Verwaltung (LAN) RJ-45
Stromversorgung
Stromversorgungsgerät
Internes Netzteil - Hot-Plug
Installierte Anzahl
2
Redundante Stromversorgung
Ja
Erforderliche Netzspannung
Wechselstrom 120/230 V (50/60 Hz)
Verschiedenes
Rackmontagesatz
Mitgeliefert
Produktzertifizierungen
EN55024, FCC CFR47 Part 15 A, EN 62368-1, EN 55032
Software / Systemanforderungen
Software inbegriffen
LANconfig
Maße und Gewicht
Breite
44.2 cm
Tiefe
37.5 cm
Höhe
4.4 cm
Gewicht
4.9 kg
Herstellergarantie
Service und Support
Begrenzte Garantie - 5 Jahre
Umgebungsbedingungen
Min Betriebstemperatur
0 °C
Max. Betriebstemperatur
40 °C
Zulässige Luftfeuchtigkeit im Betrieb
10 - 90 % (nicht-kondensierend)
Gewicht (kg) 7.704000
